Monitor
TFT display: 7" / 16:9 Format
Resolution: 1.024 x 600 px
Wöhler pan / tilt camera head Ø4
Type: 1/3" COLOR CMOS
Resolution: 720 x 576px (PAL); 720 x 480px (NTSC)
Lens: f = 2,3 mm, F = 2,5
Angle of image capture: 130°
Light source: white LEDs (12 pcs.)
Protection class: IP 67
Dimensions: Ø40 x 60 mm
Transmission frequency for locator:9.2 kHz
Wöhler miniature camera head Ø26
Type: 1/3" COLOR CMOS
Resolution: 720 x 576 px (PAL); 720 x 480 px (NTSC)
Lens: f = 2,3 mm, F = 2,5
Angle of image capture: 145°
Light source: white LEDs (12 pcs.)
Protection class: IP 68
Dimensions: Ø26 x 38 mm
Transmission frequency for locator:9.2 kHz
Camera rod
Length: 20 / 30 m
Minimum bending radius: approx. 297 mm
Connecting cable to monitor: 2 m
Electronic meter counting
Resolution: 23 mm
Max. Deviation: 5 % from measured value
Data storage
Internal memory: 4Gb / expandable with USB stick
Resolution photo recording: 1.024 x 600px (with overlays); 1.024 x 685 px (without overlays)
Resolution video recording: 720 x 576px (PAL); 720 x 480px (NTSC)
Recording format: PNG / AVI
Double-sided suitcase
Dimensions: 18 x 46 x 50 cm
Total weight incl. monitor, camera head and camera rod:10 kg
Locator receiver
Display: Graphic display of the camera head position
Output impedance headphones:32 Ohm
Power supply: 3.7 V Lithium-Ion rechargeable battery
Frequency: 8.9 / 9.2 kHz
Video

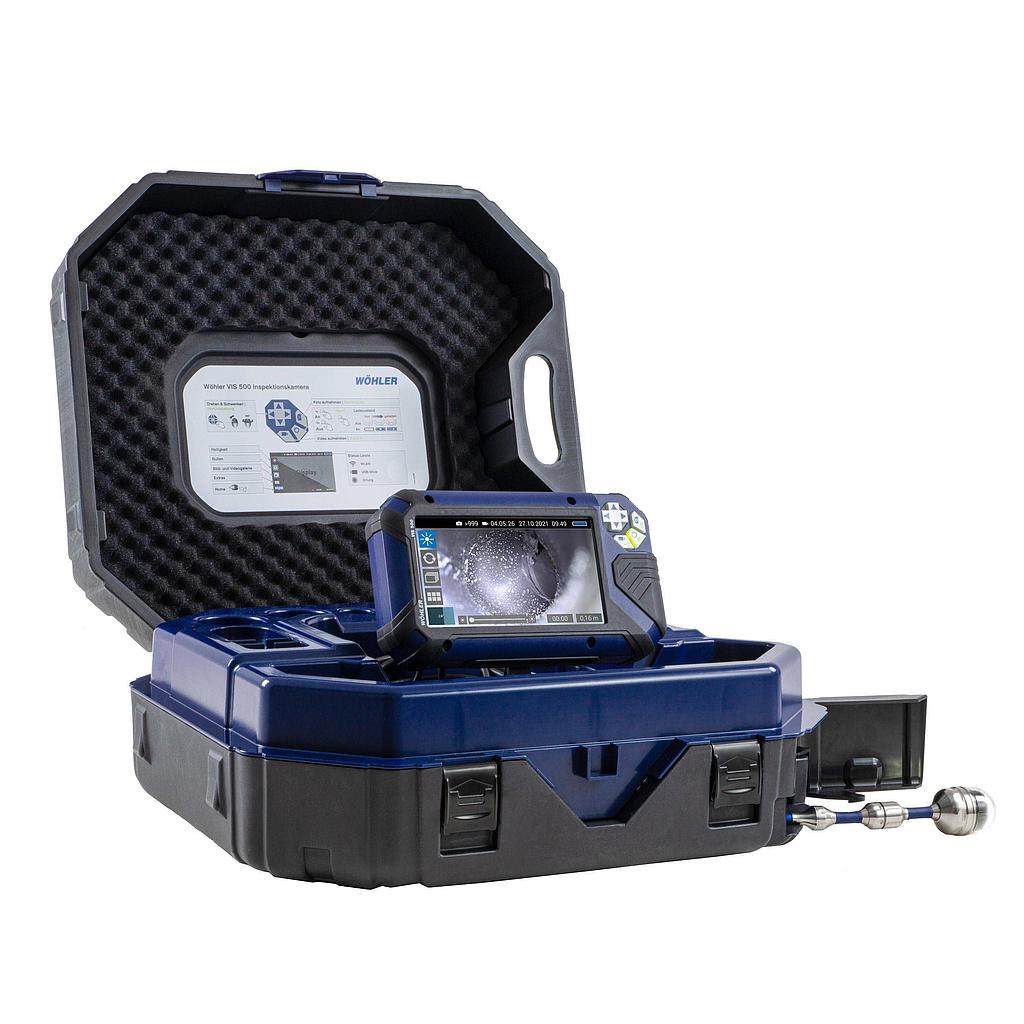

Scope of delivery:
Wöhler VIS 500 monitor unit
TFT widescreen colour monitor and 2 m connection Cable (monitor removable)
Glare protection
Lithium-ion battery 6 h operation time
USB mains charger with USB-C cable
Wöhler pan and tilt camera head Ø 40, detachable
Data storage: Internal memory 4 GB expandable with USB stick
Camera rod Ø 6.5 mm / 30 m
Replacement plastic domes
Double-sided suitcase
Datasheet
