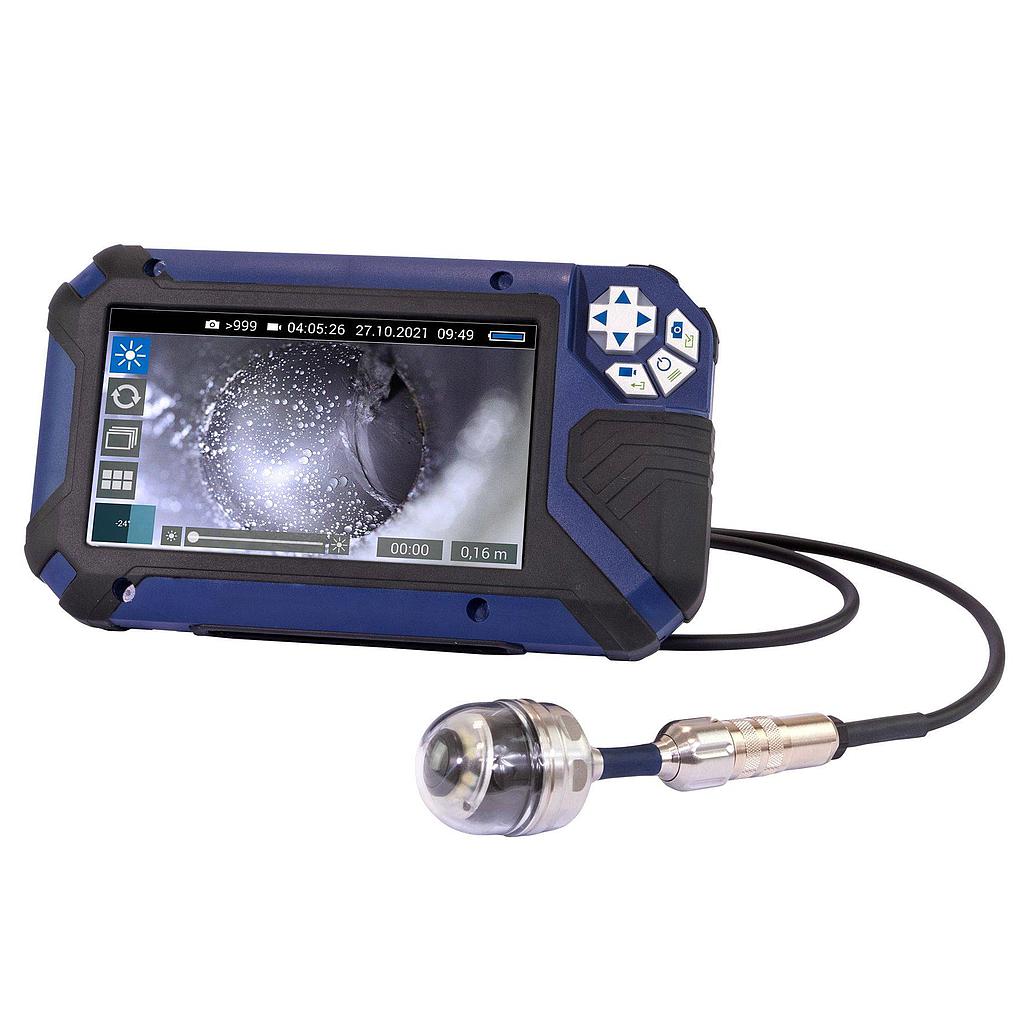

Wöhler VIS 500 Inspection Camera (camera cable 20m, Ø40mm)

Monitor

TFT display: 7" / 16:9 Format

Resolution: 1.024 x 600 px

Wöhler pan / tilt camera head Ø4

Type: 1/3" COLOR CMOS

Resolution: 720 x 576px (PAL); 720 x 480px (NTSC)

Lens: f = 2,3 mm, F = 2,5

Angle of image capture: 130°

Light source: white LEDs (12 pcs.)

Protection class: IP 67

Dimensions: Ø40 x 60 mm

Transmission frequency for locator: 9.2 kHz

Wöhler miniature camera head Ø26

Type: 1/3" COLOR CMOS

Resolution: 720 x 576 px (PAL); 720 x 480 px (NTSC)

Lens: f = 2,3 mm, F = 2,5

Angle of image capture: 145°

Light source: white LEDs (12 pcs.)

Protection class: IP 68

Dimensions: Ø26 x 38 mm

Transmission frequency for locator: 9.2 kHz

Camera rod

Length: 20 / 30 m

Minimum bending radius: approx. 297 mm

Connecting cable to monitor: 2 m

Electronic meter counting

Resolution: 23 mm

Max. Deviation: 5 % from measured value

Data storage

Internal memory: 4Gb / expandable with USB stick

Resolution photo recording: 1.024 x 600px (with overlays); 1.024 x 685 px (without overlays)

Resolution video recording: 720 x 576px (PAL); 720 x 480px (NTSC)

Recording format: PNG / AVI

Double-sided suitcase

Dimensions: 18 x 46 x 50 cm

Total weight incl. monitor, camera head and camera rod: 10 kg

Locator receiver

Display: Graphic display of the camera head position

Output impedance headphones: 32 Ohm

Power supply: 3.7 V Lithium-Ion rechargeable battery

Frequency: 8.9 / 9.2 kHz
