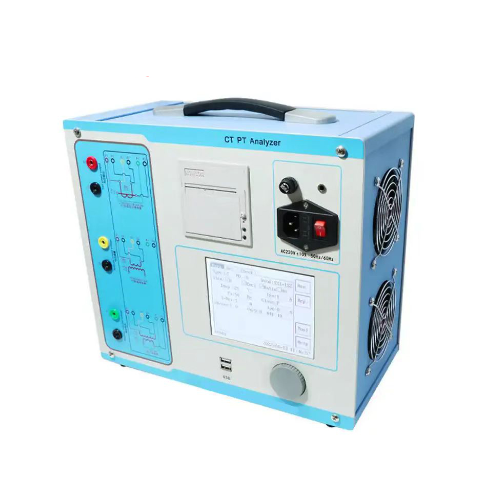

Wrindu RDHG-E Frequency Transformer Comprehensive Tester (1~10000)
Manufacturer: Wrindu Model: RDHG-E - Contact
Test purpose: CT， PT
output: 0 ～ 180Vrms, 12Arms, 36A (peak value)
Voltage measurement accuracy: ±0.1%
CT transformation ratio measurement: 1~10000 / ±0.2%
PT transformation ratio measurement: 1~10000 / ±0.2%
phase measurement: ±3min / 0.3min
Secondary winding resistance measurement: 0～300Ω / 1%±1mΩ
AC load measurement: 0～300VA / 1%±0.1VA
Input power supply voltage: AC220V±10%，50Hz
Work Environment: Temperature: - 10 ℃ ~ 50 ℃, humidity: ≤ 90%
