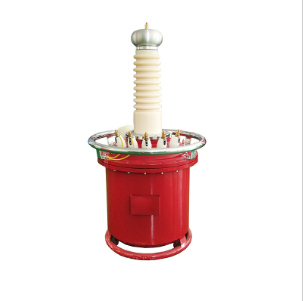

Capacity: 20 kVA
Low voltage side: voltage 400 V，current 50 A
High voltage side: voltage 100 kV, current 200 mA
Measurement ratio: 1000
Temperature rise: 50℃
Datasheet
Specification | Capacity kVA | low voltage side | high voltage side | Measurement ratio | temperature rise ℃ | ||
voltage V | current A | voltage kV | current mA | ||||
6/50 | 6 | 200 | 30 | 50 | 120 | 500:1 | 50 |
10/50 | 10 | 200 | 50 | 50 | 200 | 500:1 | 50 |
15/50 | 15 | 400 | 37.5 | 50 | 300 | 500:1 | 50 |
20/50 | 20 | 400 | 50 | 50 | 400 | 500:1 | 50 |
30/50 | 30 | 400 | 75 | 50 | 600 | 500:1 | 50 |
50/50 | 50 | 400 | 125 | 50 | 1000 | 500:1 | 50 |
10/100 | 10 | 200 | 50 | 100 | 100 | 1000:1 | 50 |
15/100 | 15 | 400 | 37.5 | 100 | 150 | 1000:1 | 50 |
20/100 | 20 | 400 | 50 | 100 | 200 | 1000:1 | 50 |
30/100 | 30 | 400 | 75 | 100 | 300 | 1000:1 | 50 |
50/100 | 50 | 400 | 125 | 100 | 500 | 1000:1 | 50 |
10/150 | 10 | 200 | 50 | 100 | 66.7 | 1500:1 | 50 |
15/150 | 15 | 400 | 37.5 | 150 | 100 | 1500:1 | 50 |
20/150 | 30 | 400 | 50 | 150 | 133.3 | 1500:1 | 50 |
30/150 | 30 | 400 | 75 | 150 | 200 | 1500:1 | 50 |
50/150 | 50 | 400 | 125 | 150 | 333.3 | 1500:1 | 50 |
50/200 | 50 | 400 | 125 | 200 | 250 | 2000:1 | 50 |
50/300 | 50 | 400 | 125 | 300 | 166 | 3000:1 | 50 |
Note: can be customized according to the user, non-standard products, parameters are not in the scope of the table.
