Description

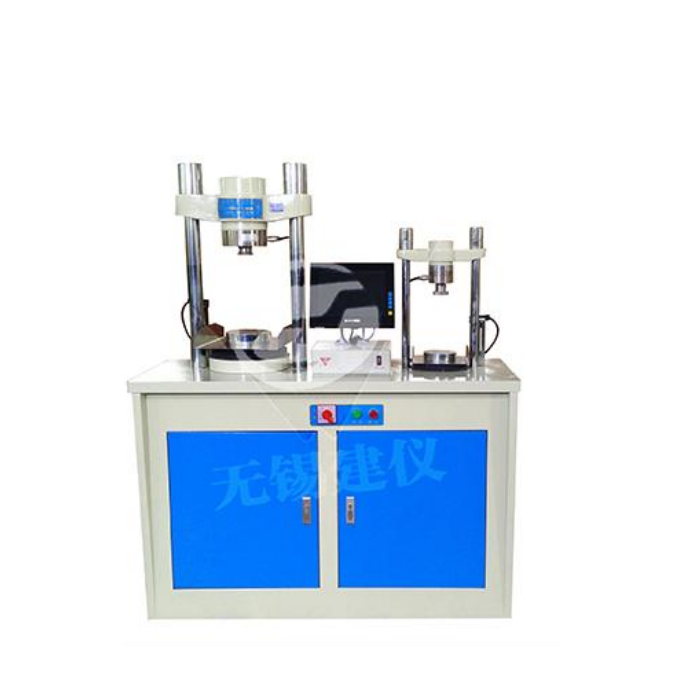

This machine is used for measuring the compressive strength of cement sand. It has the advantages of constant loading, high precision, compact structure, touch screen operation, simple interface and so on.It is an indispensable equipment for cement plant, construction engineering unit, product quality supervision and inspection station, and colleges and universities.
Specification
Maximum compression test force: 300kN.
Maximum resistance of folding test: 10kN.
The relative error of the indicated value: plus or minus 1%, can be upgraded to 0.5.
Speed adjustment range of compression test: (0.5-9.0) kN/s.
Speed adjustment range: (0.02-0.07) kN/s.
The spacing of the upper and lower pressure plates is 190 mm.
Motor power: 0.75kw (AC380V)
Power supply: 380V/50Hz(host)
220V/50Hz (controller)
Dimensions (length x width x height) : (1250 x 600 x 1500) mm.
Net weight: about 535kg.
