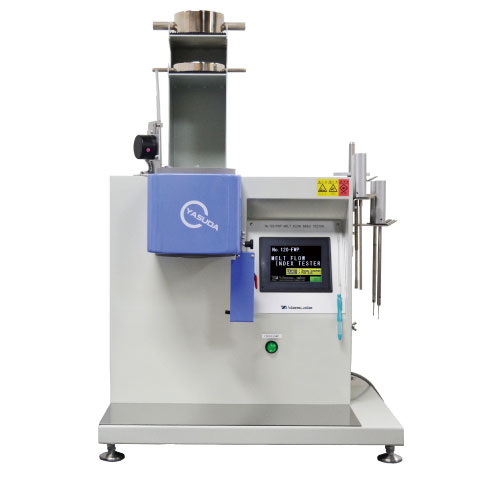

Yasuda 120-FWP Melt flow index tester

Hangings: 1 Hanging

Die: φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm

Piston: Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm

Cylinder: Inner φ9.550 ± 0.007 mm, L160 mm

Temperature Range: Max. 400 °C

Test Load: Initial 0.325 kgf Choose 1 kind from 1.20, 2.16, 3.80, or 5.00 kgf.(Option: 10.00 and 21.60 kgf)

Test Method: Method A: Manual (Option: Automatic Cutter)Method B: Automatic

Data Processing: Method A: Automatic (Measuring the weight of the cut off specimen is done by hand)Method B: Automatic

Method B Measuring: Rotary Encoder

Standard Specification: SD Card Slot, LAN Port

Option: Mini Printer, Method A Air Pressure Type Automatic Cutter, Manual Type Die Plug, Safety Cover with Interlock Attached, Half Die, Air Pressure Type Automatic Loader (No.120-FWP-W)

Accessories: Cleaning Rod (Die & Cylinder), Injection Rod, Funnel, Die Gauge, Method A Cutting Knife, Spirit Level, Gauze

Power Source: AC 100 V, 1-Phase, 15 A, 50/60 Hz or AC 200 V, 1-Phase, 10 A, 50/60 Hz

Air Source: 0.5 MPa or More(For Method A Pneumatic Type Weight Loading Device Specification)

Standard: JIS-K6719-1/2、K6921-2、K6922-2、K6923-1、K6924-1、K6926-2、K7210、ASTM-D1238、ISO-1133
