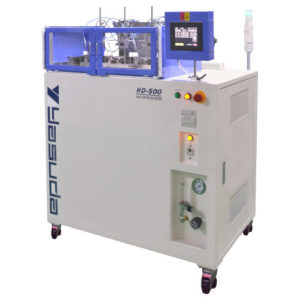

Yasuda 148-HD500 High Temperature Heat Distortion Tester
Manufacturer: Yasuda Model: 148-HD500 Origin: Japan Guarantee: 12 Month - Request a Quotation
- Contact
Stations: 3 Stations
Temperature Range: Max. 500 °C (Air Chamber, Nitrogen Gas Filling Device Attached)
Heat-Up Speed: 120 ± 10 °C/hr, 50 ± 5 °C/hr
Bending Stress: 1.80 MPa, 0.45 MPa
Weight Load: DTUL: Choose 2 type from Initial 76.5 gf to Max. 3,210 gf; Option: VICAT 10 ± 0.2 N, 50 ± 1 N; Option: Ball Pressure: 0.4 to 2.0 N
Displacement Measurement: Differential Transformer: 0.001 mm, Stroke 0 to ± 2 mm
Pressure Foot: DTUL: R3.0 ± 0.2 mm; Option: VICAT 1.000 ± 0.015 mm2; Option: Ball Pressure φ5 mm
Support Length: 64 ± 1 mm, 100 ± 2 mm (Standard)
Refrigerating Device: Fan type (Air Fan Cooling), 3 Fans, Carbon Gas Injection Cooling System
Churning Device: Propeller type, 3 propellers
Software: Windows Compatible
Accessories: Pressure Foot Adjustment, Specimen Holder
Option: Safety Cover, Simultaneous Loading Device, Borosilicate Glass
Power Source: AC 200 V, 1-Phase, 30 A, 50/60 Hz
Dimensions/ Weight (Approx.): W1,100 × D750 × H1,530 mm/ 250 kg
