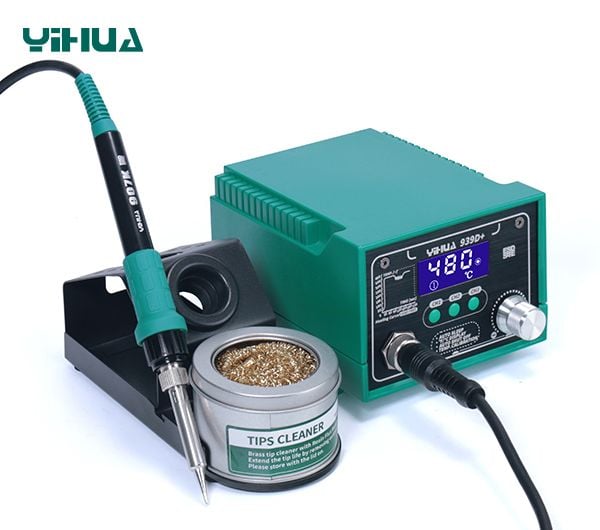

YIHUA YH-939D+ New Design With Aluminium Alloy Material And 3 Storage Segment Soldering Station (75W)

Rated voltage: AC 220V±10%  50Hz

Output power: 75W

Constant Temperature Power (High-Speed PID Programmed to Energy Savings): 200W±10％

Withstand voltage and insulation tests: AC1500V 0.4A 60S

Operating Environment: 0～40℃  relative humidity＜80％

Storage environment: －20～80℃  relative humidity＜80％

Body size: 14.5*12*8CM

Weight: 2.17KG

Work voltage: AC 26V±10%  50Hz

Temperature range: 200℃～480℃

Temperature Stability: ±1℃（Static）

Display Mode: LED Digital Display

Calibration Mode: PID Digitally Programmed Calibration

PID Temperature Calibration Cycle: 100MS

Heating Core: Imported High-Powered Heating Core

Tip-to-Ground Impedance: ＜2Ω

Tip-to-Ground Voltage: ＜2mV
