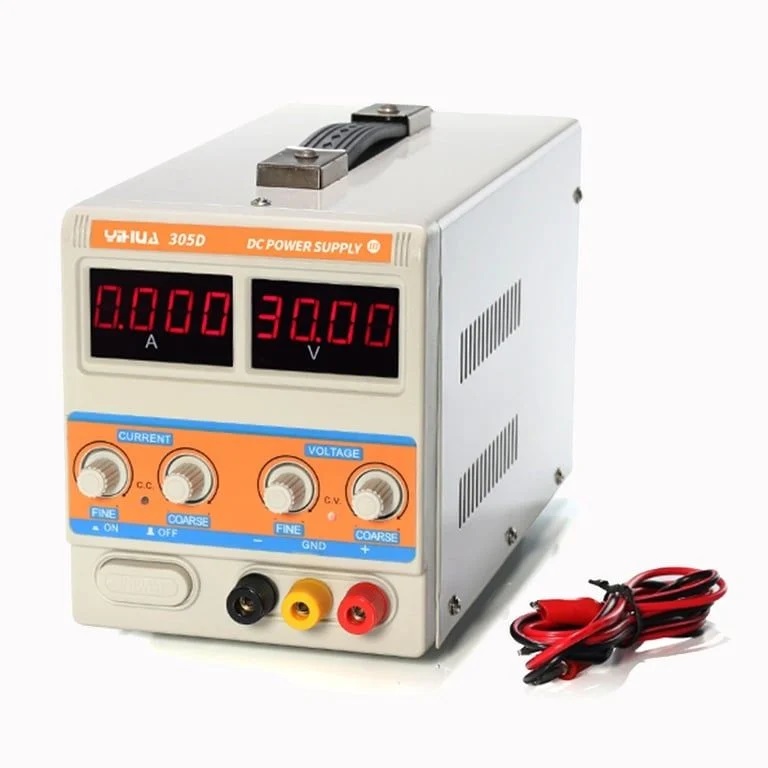

YIHUA 305D III DC Power Supply (30V 5A)

Supply power: AC 220-240V, 50Hz/60Hz.

Working Temperature: -10°C ~ 40 °C

Relative Humidity: ‹ 90%

Storage Conditions: -10°C ~ 40 °C

Relative Humidity: ‹ 80%

Stable Voltage

The output voltage is between 0 and nominal value continuously adjustable

Voltage Stability: ≤0.01% +2mV

Load Stability: ≤ 0.01% +2mV

Recovery Time: ≤100µS

Ripple Noise: ≤1 MVRMS(RMS)

Temperature Coefficient: ≤ 200PPM/°C

Stable Current

The output current is between 0 and nominal value continuously adjustable

Power Stability: 0.1% + 3mA

Load Stability: 0.2% + 3mA

Ripple Noise : ≤2mArms(RMS)

Dimensions: 330 x 170 x 210 mm

Weight: 4.8 kg
