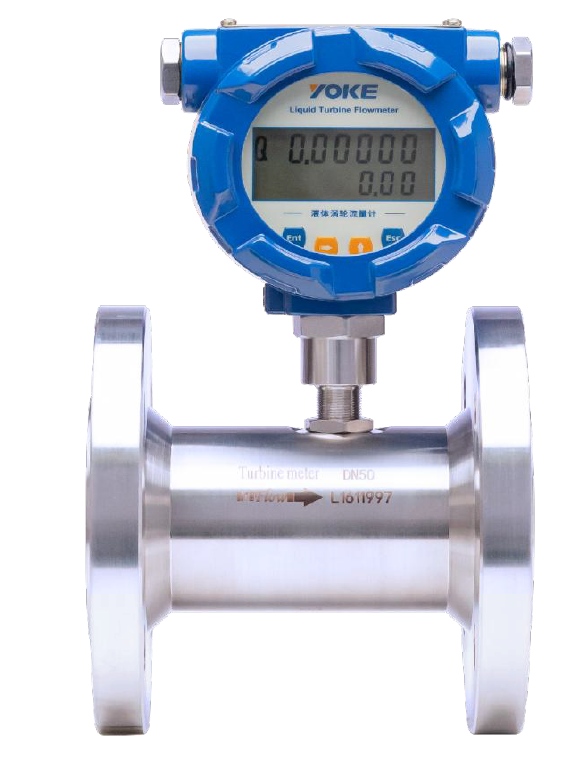

YOKE YK-LWGY- 25(FL)/G/05/S/S/E/N/K Liquid Turbine Flow Meter (DN25)
Manufacturer: YOKE Model: YK-LWGY- 25(FL)/G/05/S/S/E/N/K - Contact
Specification model: YK-LWGY-
25(FL)/G/05/S/S/E/N/K
Measurement medium: Diesel
Flow range: 1-10m³/h
Pipe diameter: DN25(1")
Accuracy level: ± 0.5%
Display mode: Onsite LCD display
Signal output: 4-20mA
Power supply: 24VDC
Pressure level: 1.6MPa
Process connection: Thread connection
Thread standard: G 1 1/4" (external thread)
Temperature range: -20~+80℃
Instrument material: SS 304
Blade material: Stainless steel
Protection level: IP65
Explosion-proof level: ExdIICT6Gb
Packing size: 300*180*180mm
Gross weight: 3 kg
