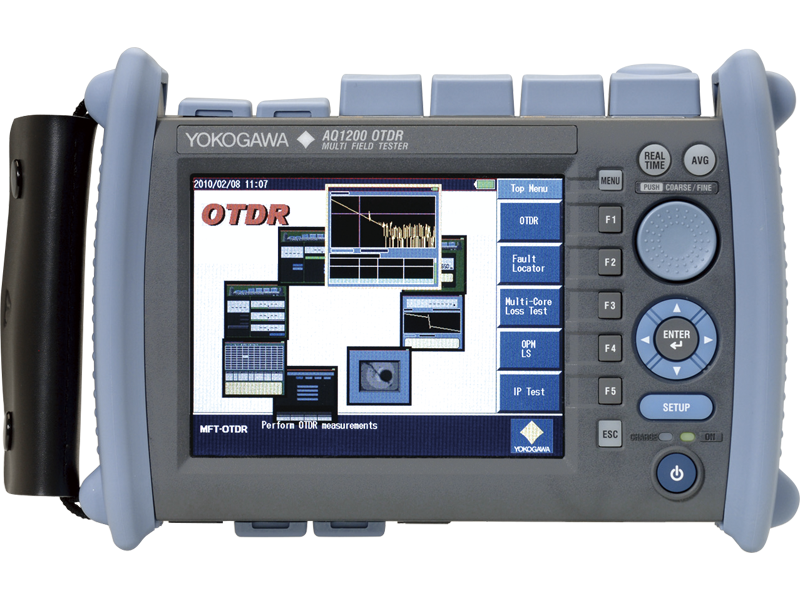

*OTDR Test
Wavelength (nm): 1310±20nm,1550±20nm
PON(/PPM): 1310/1490/1550 nm
Applicable fiber:SM(Single Mode-ITU)
Distance range: 0.5, 1, 2, 5, 10, 20, 50, 100, 200 km
Pulse width: 3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs, 10 µs
Level unit: dBm, mW, µW, nW Relative: Db
Accuracy: ±5%, ±0.5 Db
Resolution:0,01
Modulation mode : CW, CHOP (270 Hz/1 kHz/2 kHz)
Memory and logging function: 10 to 1000 data, Logging interval: 0.5, 1, 2, 5, or 10 sec
*Light Source
Wavelength (nm): 1310±20nm,1550±20nm
Modulation mode : CW, 270 Hz, 1 kHz, 2 kHz
Applicable fiber:SM(Single Mode-ITU)
Storage temperature: -20 to 60°C
Humidity::20 to 85% RH (no condensation)
Power requirements: 100 to 240 VAC, 50/60 Hz Run time: 6 hours, Recharge time: 5 hours
Dimensions: 217.5 (W) × 157 (H) × 74 (D) mm,1kg
Option
SU2006A 735480 (For optical powermeters)
735481 (For optical powermeters)
SU2005A (For OTDR, LS and PON Power meter)
739871: Soft carrying case Connector adapter (SC) Connector adapter (FC) Ferrule adapter (φ1.25 )* Ferrule adapter (φ2.5)* Universal adapter (SC) Universal adapter (FC) Complied with PSE UL/CSA standard VDE standard AS standard BS, Singapore standard GB standard, Complied with CCC EK standard (S. Korea) BSMI
739882: Battery pack (Spare)
B8070CY: 5 houlder belt
735070: AQ7932 OTDR Emulation Software (Ver4.1 or later) Display English
Optical connector: 2.5 mm ferrule type
Center wavelength: 650 nm ±20 nm
Optical output level: 3 dBm or more (peak)
Modulation mode: CHOP Approx. 2 Hz
Laser class: 3R
Interface: 10BASE T / 100BASE TX
Functions: PING test, PC remote control
Modulation mode: CHOP Approx. 2 Hz
Laser class: 3R
Interface: 10BASE T / 100BASE TX
Functions: PING test, PC remote control
