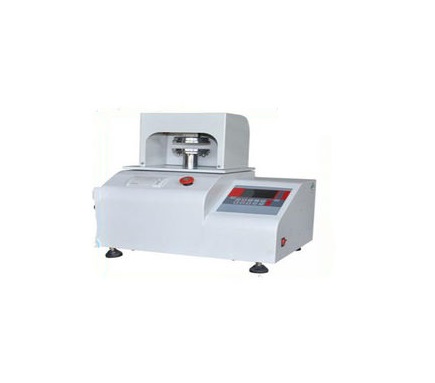

YuYang YY1410 Fully Automatic Bursting Strength Testing Machine Paper Bursting Strength Tester
Manufacturer: YuYang Model: YY1410 Origin: China Guarantee: 12 Month - Contact
Capacity (Optional): High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (switchable): Kpa, psi, kg/cm^2
Accuracy: ±0.5%
Pressure Range: 250~5600kpa
Speed of Compression: High Pressure 170 10ml/min
Specimen Clamping Force: >690kpa
Oil: 85% Glycerin; 15% Distilled Water
Sensing method: Pressure Transmitter
Indicating Method & Display: LCD
Material of the Ring: Stainless Steel SUS304
Opening in Upper Clamp: 31.5± 0.05 mm Diameter
Opening in Lower Clamp: 31.5± 0.05 mm Diameter
Motor: Anti-vibration Motor 1/8 HP
Operation Method: Automatic
Dimension (LWH): 445*425*525 mm
Weight: Approx. 70 kg
Power: AC220 10%, 50 Hz
Power Capacity: 120W
Standard Configuration: Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration: Printer, Air Pump
