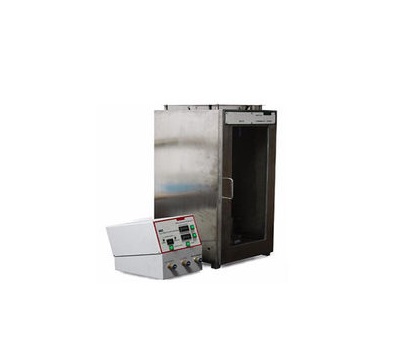

YuYang YY806 Textile Fabrics Vertical Flame Resistance Performance Testing Equipment

1. Compact design of chamber with viewing window;

2. Humboldt Tirrill burner made in USA;

3. Automatic positioning of burner by pressing 1 button, and reset after testing;

4. Flame height adjustable by needle valve;

5. Gas pressure controlled by pressure valve and gauge;

6. Stainless steel pipe of gas supply, together with pressure reducing valve, solenoid valve for safety;

7. PLC+7" touch screen control, display, calculate during testing;

Electronic spark ignition;

Automatic timing T1, T2, T3;

Ignition time is customized;

Test grade value, and standard value can be shown on the screen;

8. Farma as per the standard is available;

9. Steel ruler measuring the damaged length of burnt specimen;

Dimension 580*410*860mm

Weight About 40kg

Power supply AC 220V, 2A
