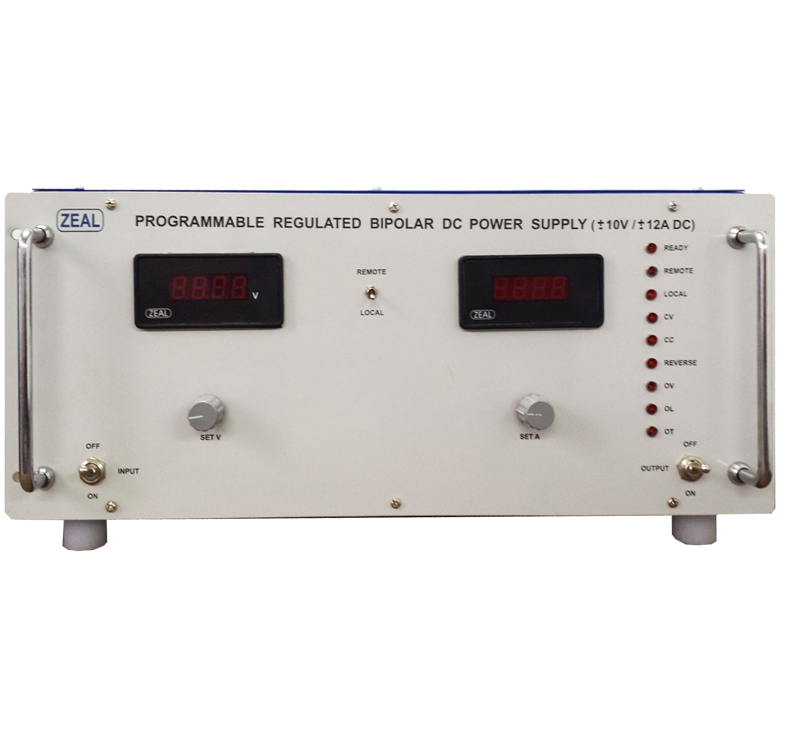

ZEAL ZMBPS Bipolar Power Supply (0 ~± 10V, 0 ~± 12A)

Output Voltage: 0 to ± 10V ( or Vmax. rated )

Output Current: 0 to ± 12A ( or Imax. rated )

Input Voltage: Single Phase 230V AC, ±10%, 50 Hz

Type of cooling: Forced air cooled ( Cooling fan )

Output voltage program accuracy: ≤ ± 0.1% of set value

Output current regulation: ≤ ± 0.1% for specified line variations and no load to full load variations

Output voltage ripple ( RMS ): ≤ ± 0.05% of set value

Output current ripple: ≤ ± 0.05% of set value

Output voltage noise: ≤ ± 0.05% of set value

Output current stability: ≤ ± 0.05% per hour after nominal warm up time of less than 3 hours

Output voltage: Continuously adjustable in between - 10V to +10V or by panel mounted 10 - turn potentiometers

Remote sensing: With 4 - wire system, 0.5 volt drop or more per wire
