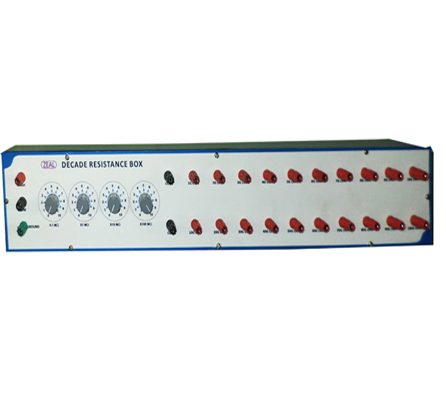

ZEAL ZMDRB-0.1M-100G Decade Resistance Box With Fix Resistors (0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ)
Manufacturer: ZEAL Model: ZMDRB-0.1M-100G Origin: India Guarantee: 12 Month - Contact
Specifications:
Decades of 0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ
Fixed Resistors: 1 GΩ, 2 GΩ, 3 GΩ 4 GΩ, 5 GΩ, 6 GΩ, 7 GΩ, 8 GΩ, 9 GΩ, 10GΩ, 20 GΩ, 30 GΩ, 40 GΩ, 50 GΩ, 60 GΩ, 70 GΩ, 80 GΩ, 90 GΩ, 100 GΩ
Accuracy:
± 5% for all decades and fixed resistors
10 Fix resistors 1 GΩ x 10 in series mounted on acrylic
10 Fix resistors 10GΩ x10 in series mounted on acrylic
Test Voltage:
1000V for 0.1 M Ω,1 M Ω,10 M Ω, 100 MΩ
5000V for all fixed resistors
Power Rating: 1 Watt at 500C
