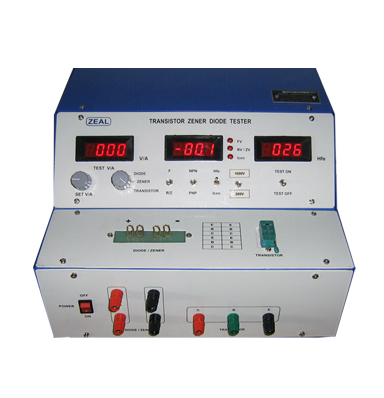

ZEAL ZMTZDT Transistor, Zener Diode Tester (200 VDC)
Manufacturer: ZEAL Model: ZMTZDT Origin: India Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Input Power: 230 VAC, 50 Hz / 110 VAC, 60 Hz
Hfe Measurement:
Test Voltage Range: 5.60 Volt VCC
Base Current: 8µA
Accuracy of Hfe: 1.5%
Ice Measurement:
Test Voltage Range: 0 to 200 VDC
Leakage Current Range: 2000µ
Accuracy: 1%
Diode Forward Drop Measurement:
Test Current Range: 0 to 10A DC
Forward drop Voltage Range: 2 VDC
Accuracy: 1%
Diode Reverse Voltage Breakdown Measurement:
Test Voltage Range: 0 to 1000 VDC
Acceptable Leakage Current Range: 1 mA DC
Accuracy: 1%
Zener Voltage Measurement:
Test Voltage Range: 2 to 1000 V DC at 20µA max.
Accuracy: 1%
Metering: 3½ Digit 7 Segment Display
Weight: 15 kg
