Manufacture: Seamark ZM

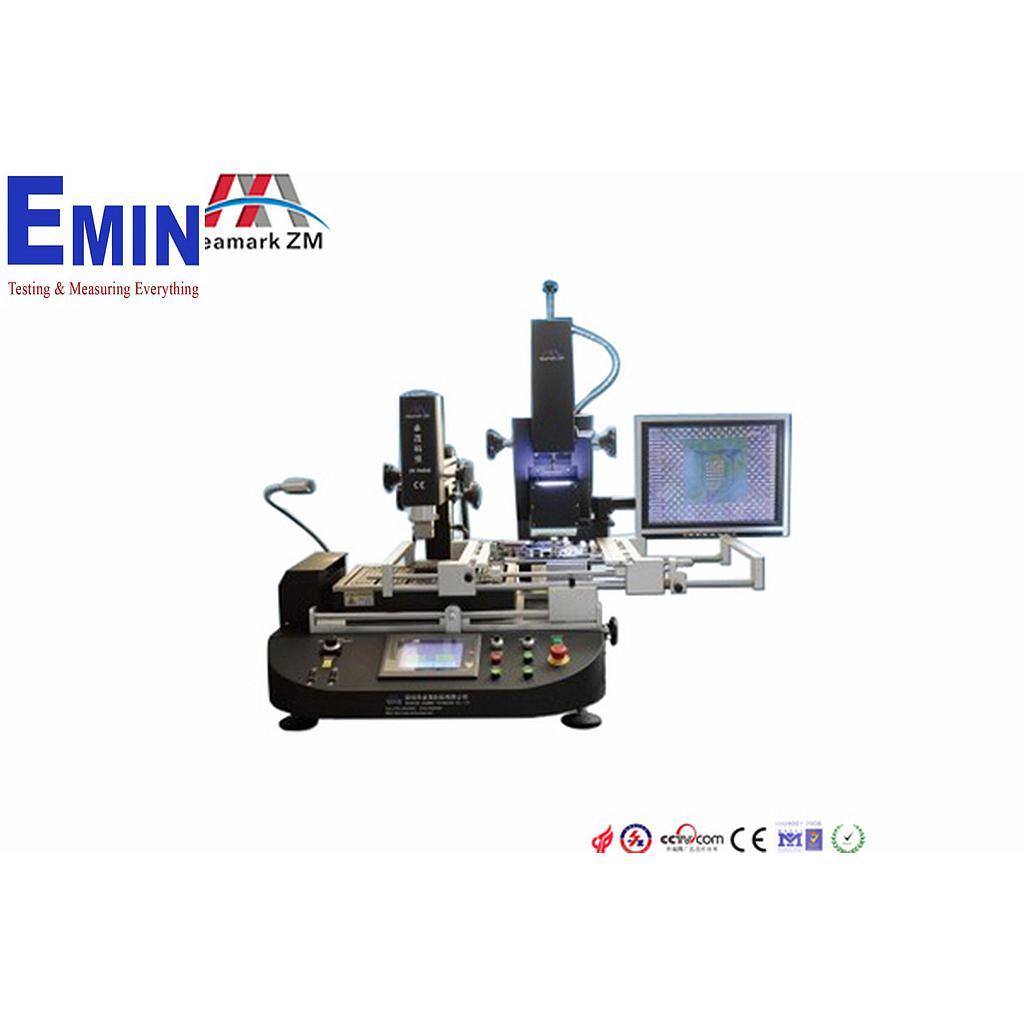

Model: ZM-R6808
Made in: China
Warranty : 12 months
Total Power: 4850W
Top heater: 800W
Bottom heater: 2nd heater 1200W，3rdIR heater 2700W
Power: AC220V±10％ 50/60Hz
Machine Dimensions: L850*W830*H800 mm
Positioning: V-groove, PCB support can be adjusted in any direction and with external universal fixture
Temperature control: K-type thermocouple (Closed Loop), heating independently, temperature precision within ±2 degree
PCB size: Max 370*450 mm Min 22*22 mm
Electrical materials: Taiwantouch screen+ PLC+ heating plate(Germany)+high precision intelligent temperature control module
Camera magnification: 10-100×
Optical system: CCD color high-definition imaging system, manually
BGA chip: 1×1-80×80mm
Touch screen: 7.0 inch ,Resolution 640X480, Panel Visa touch screen, external USB interface
External temperature sensor: One(optional)
Placement Accuracy: X, Y axis and the R angle with micrometer adjust, accuracy within ±0.01MM
Net weight: 75kg
