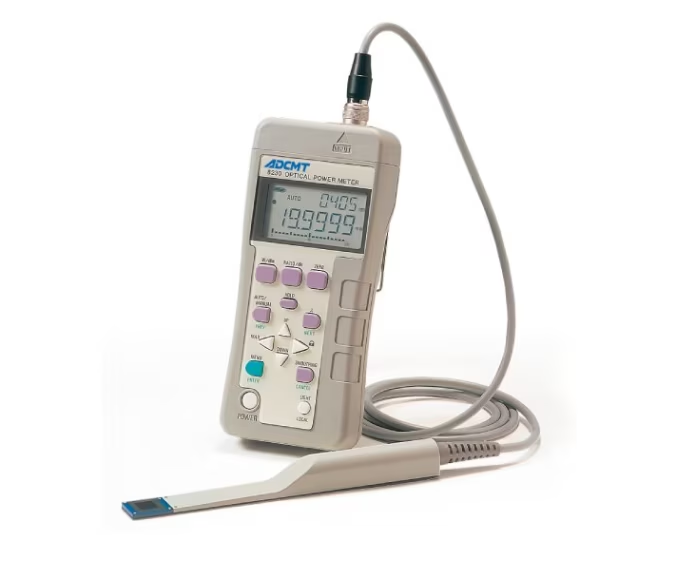

ADCMT 8230 Optical Power Meter (200 mW)

Specifications

Display resolution: 0.1 pW (display in W), 0.001 dB (display in dBm)

Accuracy (To be added to eash sensor accuracy) Conditoion: within 24 hours after offset zero execution, unit: W, 5½-digit display, CF=1:

20 nW range: ±（0.55 %＋2000 digits）　

200 nW range: ±（0.15 %＋200 digits）

2 μW to 200 mW range: ±（0 %＋70 digits）

Diplay: VFD;  Wavelength display: 4 digits;  Power display:  5½ digits (Uni: mW, μW, nW, dBm or dBr)

Range switching: Auto, manual or remote  switching among 8 ranges

Measurement speed: 5 readings/s or more

Wavelength sensitivity correction: Automatic correction of sensor wavelength sensitivity by wavelength setting (in 1nm step)

 Interface: Analog output, USB

Supplied Accessories:

Power cable  (JIS 2 m): 1
