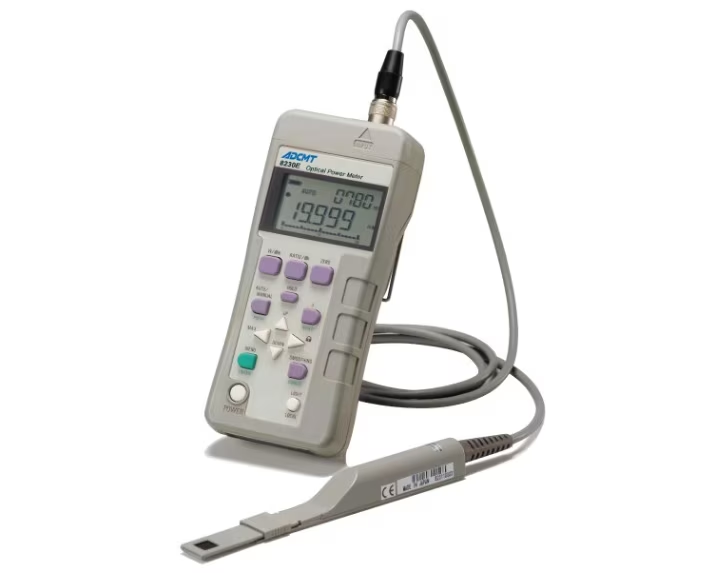

ADCMT 8230E Optical Power Meter (200 mW)

Specifications

Display resolution: 1 pW (display in W), 0.01 dB (display in dBm)

Accuracy (To be added to eash sensor accuracy) Conditoion: within 24 hours after offset zero execution, unit: W, 5½-digit display, CF=1:

20 nW range: ±（2.55 %＋200 digits）　

200 nW range: ±（2.15 %＋20 digits）

2 μW to 200 mW range: ±（2 %＋7 digits

Diplay: VFD;  Wavelength display: 4 digits;  Power display:  5½ digits (Uni: mW, μW, nW, dBm or dBr)

Range switching: Auto, manual or remote  switching among 8 ranges

Measurement speed: Approx. 5 readings/s

Wavelength sensitivity correction: Automatic correction of sensor wavelength sensitivity by wavelength setting (in 1nm step)

 Interface: Analog output, USB

Supplied Accessories:

Power cable  (JIS 2 m): 1
