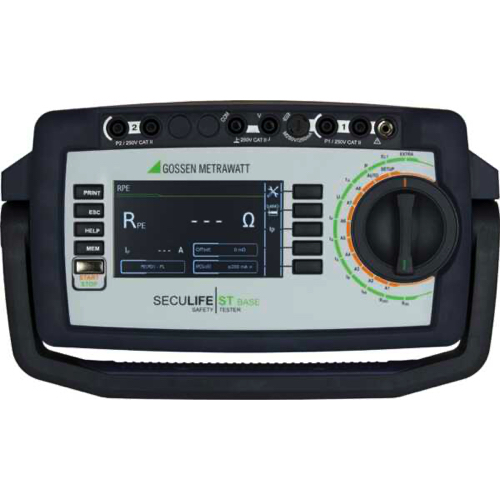

Application: Testing of electrical safety for medical equipment
Test Current (max): 25 A
Nominal Voltage: 230 V
Test Voltage: 2.3 kV AC / 3.3 kV DC
Dimensions (W x H x D): 295 x 145 x 150 mm
Weight: approx. 4.0 kg
Protection Class: IP40
Standards: IEC/EN 62353, DIN VDE 0701-0702, VDE 0751
Measurement Functions:
Protective Conductor Resistance: Yes
Insulation Resistance: Yes
Leakage Current: Protective conductor, device, touch, patient
Voltage Measurement: Contact voltage, SELV, PELV
Functional Test: U, I, P, S, frequency
Power Cord Test: Continuity, short circuit, polarity check
Temperature Measurement: Pt100 / Pt1000
Features:
Test Sequences: Predefined & programmable
Data Memory: approx. 50,000 records
Display: 4.3” TFT color
Interfaces: USB, XML export
RFID: Supported
Remote Control: Yes
Software: IZYTRONIQ
Special Feature: Antimicrobial housing
