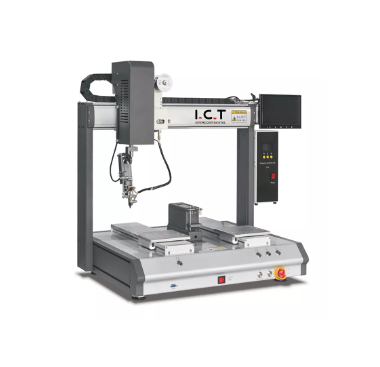

I.C.T I.C.T-SR250D Pcb Smd 5-Axis Desktop Robotic Soldering Robot Machine

Product Features:

1. Cost saving:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency.

2. X,Y,Z,R,and soldering wire feeding motion system are all controlled by one combined 5 axis motion control card with PC,so it can integrate all the functions into one software.it makes machine running more stable and easy to operate.

3. X,Y,Z,R axis adopt quality step motor with it's contorl system, make machine run smoothly and precisely .

4. It is equipped with automatic soldering tip cleaning device ,which can improve soldering quality and prolong lifetime of soldering tip.

5. Windows 7 English operation system ,use touchscreen with wireless controllerand teach method for programming ,working very easy .

6. Break tin solder wire feeding system can pierce holes when feeding solder wire ,it can reduce burst tin that causes flux remaining on PCB When soldering under high temperature to improve the soldering quality .solder wire feeding accuracy can reach 0.1mm.

7. High frequency induction heating system has rapid temperature recovery time , heating element adopt silver coil which can ensure long lifetime . soldering tip can be easliy changed with lower cost .

8. Self-developed advanced software, fool-style programming with wireless controller like play game , all parameters can be set in one program, such as moving path, solder wire feeding quantity, soldering time etc ,very easy to use.

9. Optional smoke cover and smoke extractor can provide a very clean work enviroment .

10. Various soldering tips can meet different process requirement. customized solering tips is also available.

11. One worker can operate 2-3 robots.what this worker does is only pick and place fixture.

12. Robot is strictly customized based on requirements on products and soldering,in line with requirements of production line.

TOP Advantage:

1.Spot soldering,drag soldering,automatic cleaning and multi-angle soldering are available.

2.Position calibration,soldering dot array,parameter copy,automatic location and skip are available.

3.Teaching programming enables customers to implement all types of hand soldering upon their requirement.

4.Program calibration achieves workpiece integral coordinate position compensation.

5.Program insertion and deletion make program revised easily and rapidly.

6.Intelligent control system achieves accurate delivery of solder,speed,time,temperature and quantity of solder can be adjusted and controlled accurately.
