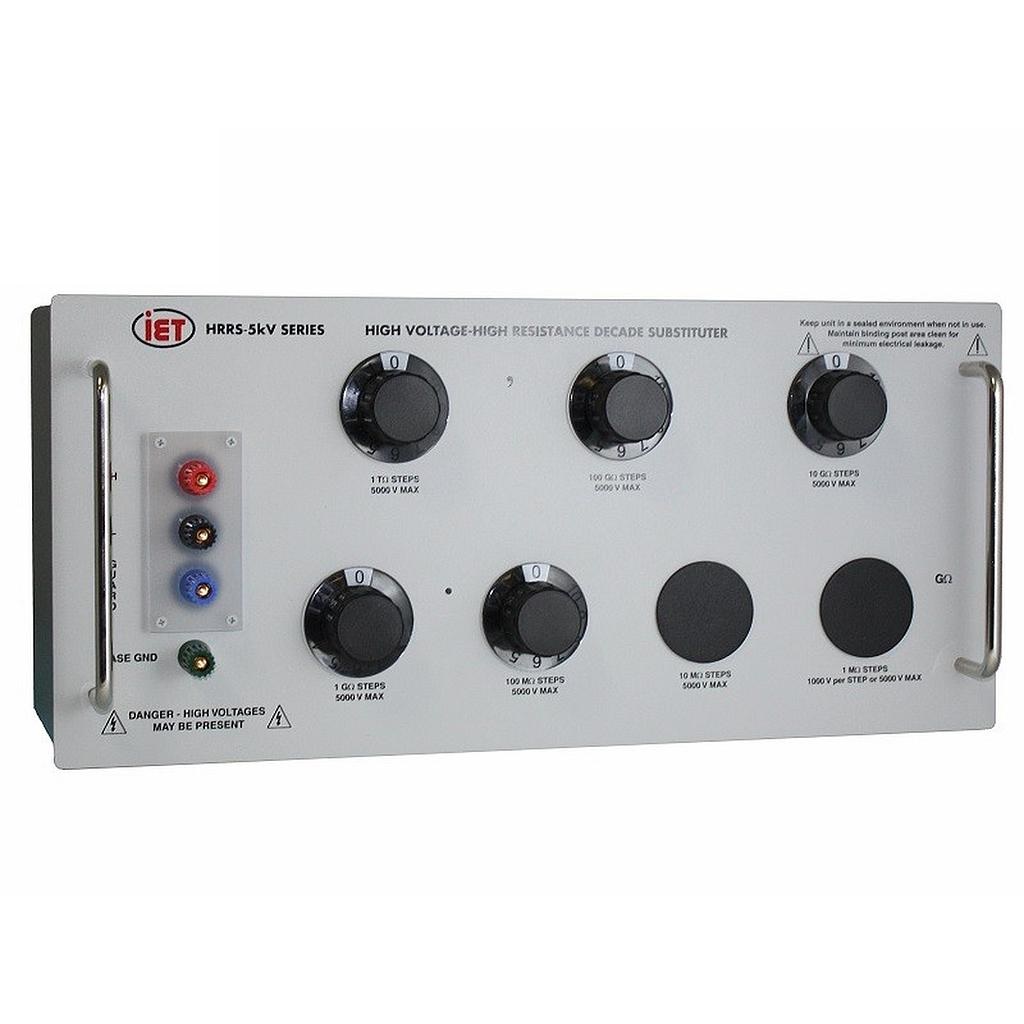

IETLAB HRRS Series High Power Resistance Decade Box (max 01%; 1 Ω tới 10 TΩ, Max 10kV)

Name: IETLAB HRRS Series High Power Resistance Decade Box (max 01%; 1 Ω tới 10 TΩ, Max 10kV)
Brand: IET LABS

ManufacturerIET LABS

ModelHRRS-5 kV & 10 kV Series

OriginUSA

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

(Full specifications can be found on datasheet)

Resistance from 1 Ω to 10 TΩ +
High-accuracy: up to .01%; 3 Accuracy Classes
Max voltage of 5 kV or 10 kV; 2 Series
Ideal for the calibration of meggers

datasheet

manual

HRRS--5kV and 10kV Basic Specifications

(Full specifications can be found on the datasheet)

Resistance per step	Total decade resistance	Accuracy			Max voltage per step (V)	5 kV Maximum Voltage (V)	10 kV Maximum Voltage (V)	Temperature coefficient (ppm/C)	Voltage coefficient (ppm/V)	Stability (ppm/yr)	Resistor Type
Resistance per step	Total decade resistance	Q	B	F	Max voltage per step (V)	5 kV Maximum Voltage (V)	10 kV Maximum Voltage (V)	Temperature coefficient (ppm/C)	Voltage coefficient (ppm/V)	Stability (ppm/yr)	Resistor Type
10Ω	100Ω	±(0.01%+2 mΩ)	±(0.03%+2 mΩ)	±(0.10%+2 mΩ)	2.5	25	25	15	0	10	Wirewound
100Ω	1kΩ	±(0.01%+2 mΩ)	±(0.03%+2 mΩ)	±(0.10%+2 mΩ)	8	80	80	5	0	10	Wirewound
1kΩ	10kΩ	±0.01%	±0.03%	±0.1%	23	230	230	5	0	10	Wirewound
10kΩ	100kΩ	±0.01%	±0.03%	±0.1%	70	700	700	5	0	10	Wirewound
100kΩ	1MΩ	±0.01%	±0.03%	±0.1%	230	2,300	2,300	5	0	10	Wirewound
1MΩ	10MΩ	±0.01%	±0.03%	±0.1%	1000	5,000	10,000	15	0.2	25	Wirewound
10MΩ	100MΩ	±0.03%	±0.1%	±1%	5,000	5,000	10,000*	15	0.2	50	High-voltage film
100MΩ	1GΩ	±0.1%	±0.2%	±1%	5,000 or 10,000	5,000	10,000	25	<1	100	High-voltage film
1GΩ	10GΩ	±0.2%	±0.5%	±1%	5,000 or 10,000	5,000	10,000	25	1	500	High-voltage film
10GΩ	100GΩ	±0.5%	±1%	±1%	5,000 or 10,000	5,000	10,000	25	2	500	High-voltage film
100GΩ	1TΩ	±0.5%	±1%	±1%	5,000 or 10,000	5,000	10,000	100	5	500	High-voltage film
1TΩ	10TΩ	±3%	±5%	±10%	5,000 or 10,000	5,000	10,000	300	<20	500	High-voltage film

The High Resistance, 5kV & 10 kV Decade Box (HRRS-5kV, HRRS-10kV) is a family of high voltage decade boxes that answers the need for calibration and working high resistance decade standards that go up to 10 TΩ. High values of resistance are available for use at high voltages, without sacrificing accuracy, stability, and temperature and power coefficients of resistance.

The HRRS-5kV, 10 kV Decade Box offers a broad choice of resistance sources that are high-range with excellent performance. These high resistance decade boxes employ state-of-the-art precision resistors of various types. They are designed specifically for operation at high voltage, with very low leakage to minimize degradation of accuracy.

The standard models offer a choice of one to nine decades. The panels are clearly labeled showing the step size and maximum allowable applied input for each decade. Custom requirements outside of the standard models can be satisfied.

With a resolution as low as 10 Ω and a maximum available resistance of 10 TΩ, the HRRS-5kV and 10kV Series may be used for exacting precision high-value resistance applications that require voltages of up to 10 kV.

HRRS-5kV & -10kV High Resistance Decade Box Applications
