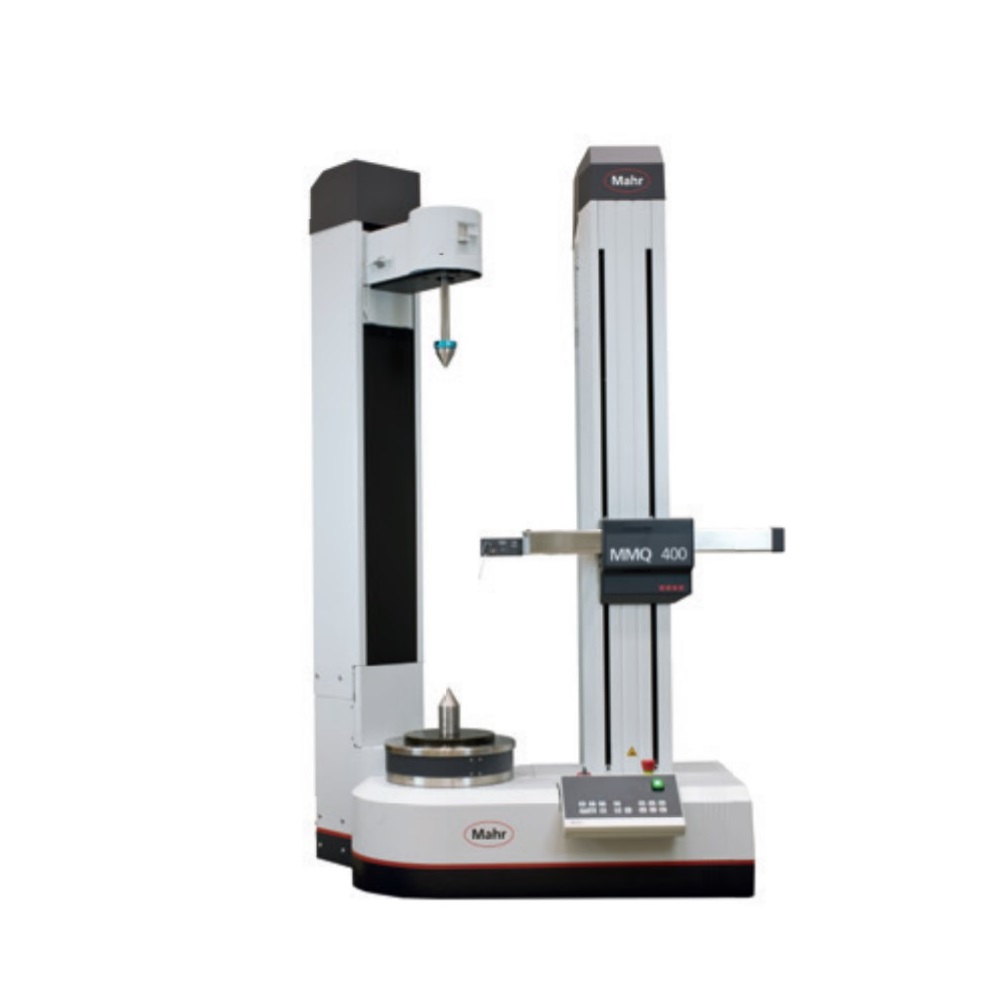

Mahr 5440780 Universal Form Measuring Machine (MMQ 400-2, Z 350 mm, X 180 mm, auto)

Roundness deviation (µm+µm/mm measuring height) *: 0,01 + 0,00025

Axial runout deviation (µm+µm/mm measuring radius) *: 0,02 + 0,0001

Centering and tilting table: automatic

Table diameter (mm): 285

Table load capacity, centered (N): 600

Speed (rpm) 50 Hz / 60 Hz: 0.2-15

Measuring path, motorized Z (mm): 350

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm):0.5

Measuring speed (mm/s), Z axis: 0,1-30

Positioning speed (mm/s), Z axis: 0,5 -100

Measuring path, motorized X (mm): 180

Perpendicularity X/C axis, measuring path (µm):1

Positioning speed (mm/s), X axis: 0,5-30

Measuring speed (mm/s), X axis: 0,5-10
