Suction rate: 280 l/min / 9.9 cfm
Filling capacity: 140 l/min / 4.9 cfm
Effective delivery volume (at 80% max. pressure): 130 l/min / 4.6 cfm
Maximum pressure: 8 bar / 116 psi
Rated input power: 1.7 kW / 2.5 HP
Maximum speed: 2850 rpm
Tank capacity: 50 l / 13.2 gal
Sound pressure level (LpA): 85 dB(A)
Sound power level (LwA): 97 dB(A)
Dimensions: 770 x 386 x 662 mm / 30 5/16 x 15 3/16 x 26 1/16 "
Weight: 30 kg / 66.1 lbs
Cable length: 1.5 m / 5 ft
Noise emission
Sound pressure level: 85 dB(A)
Sound power level (LwA): 97 dB(A)
Delivery
Universal quick-action coupling
Pull handle with rubber-grip
Accessories
OTHER ACCESSORIES
Occupational safety
Datasheet
Features

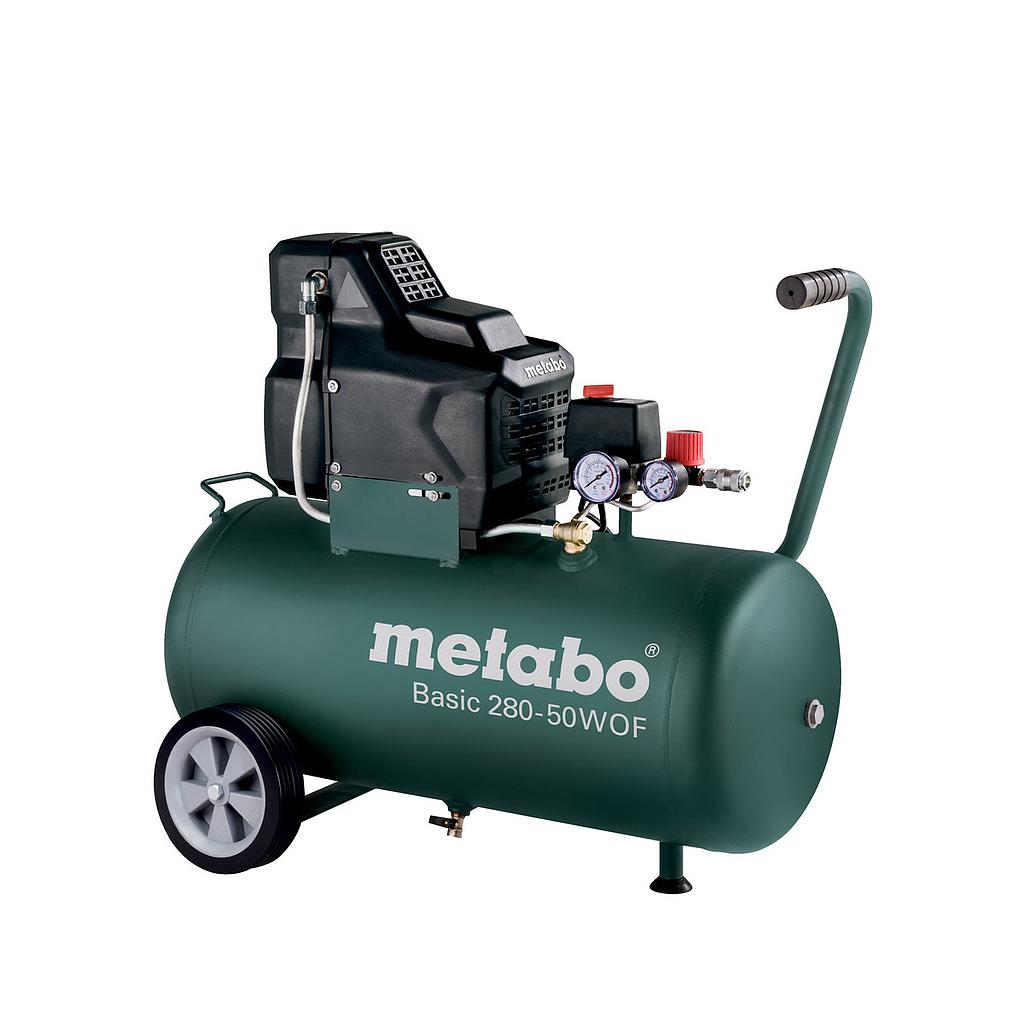

Powerful, robust compressor for simple, commercial use
Oil-free piston compressor: simple transportation and reduced service requirements
For single phase alternating current
Operating pressure can be regulated according to application by means of a pressure reducer and manometer
Convenient pressure switch for good cold starting, complete with relief valve
Overload protection: protects the motor from overheating
Rubberised, stable wheels for mobile use
No testing required before initial operation
Additional manometer for displaying the tank pressure
Rubber-coated handle for comfortable handling
10 year tank warranty against rust
