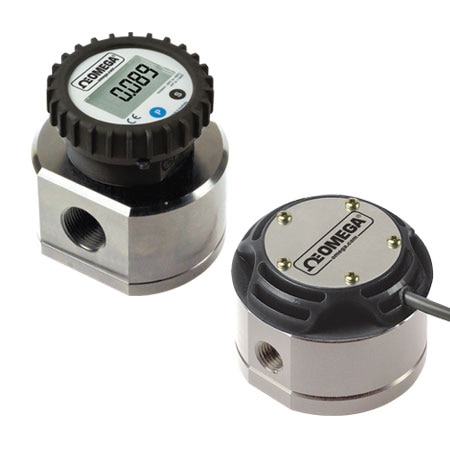

OMEGA FPD3206 Threaded and Flanged 316SS Positive Displacement Flow Meters (1 1/2 in, NPT Female, 2.6 GPM, Amplified Square Wave)

Display: No Display

Accuracy: ± 0.5 %

Mounting: Pipe

Sensor Type: Reed Switch, Hall Effect

Cable Length: 3 ft

Accuracy Note: ±0.5% of reading

Repeatability: ±0.03%

Flow Rate Note: < 5cPs (4 to 62) , > 5cPs (2.6 to 66)

Supply Voltage: 18 to 30 Vdc

Viscosity Range: 1000 cPs

Housing Material: Polypropylene

Number of Digits: 7

Electrical Output: Amplified Square Wave

Enclosure Ratings: IP67, NEMA Type 6

Supply Power Note: Hall Effect Sensor Power : 4.5 to 24 Vdc, 7.5 mA , Reed Senseor Power : 30 Vdc, 500 mA

Supply Power Type: DC

Operating Pressure, Max: 1200 psi

Process Connection Size: 1 1/2 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 66 GPM

Volumetric Flow Rate, Min: 2.6 GPM

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -40 °C
