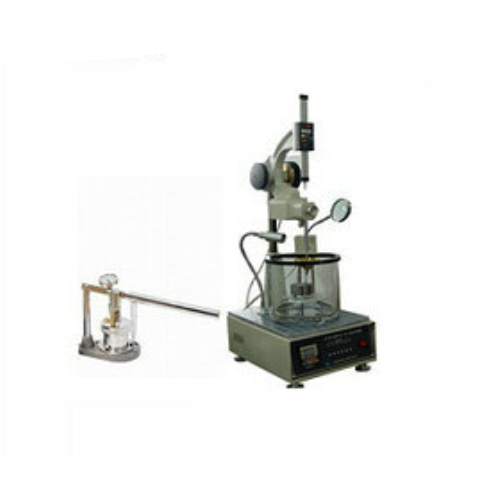

Samyon 2801C Penetrometer (0～600 penetration)

I. Main technical features

1. It adopts digital display to show the penetration number.Easy to observe.

2. Six-grade softening control.High timing control accuracy.

3. The needle holder can be adjusted roughly and finely. It is convenient to adjust and exact to aim.

4. Equipped with grease masher and constant temperature bath. The temperature in bath can be controlled automatically.Multipurpose and high cost performance.

II. Main technical specifications

1. Measurement range：(0～600) penetration

2. Timing control： 5s, 8s, 10s, 12s, 30s, 60s can be selected. The bias is within ±0.1s.

3. Resolution： 0.01mm

4. Penetration precision： ±1 penetration

5. Heating power： 200W

6. Temperature control accuracy： (25±0.1)℃（Note：ambient temperature shall not over 20℃）

7. Temperature control mode： High accuracy digital temperature controller

8. Constant temperature bath： Hard glass bath

9. Stirring： Automatically stirred by magnetic stirrer

10.Standard needle： (2.5±0.05)g

11.Standard cone: 102.5±0.05g

12.Needle holder:It can be adjusted roughly and finely.Convenient toad just and exact to aim the sample.

13. Others: Equipped with a cold light source and a magnifier; Convenient for operation and observation.

III. Optional accessories

Other cones： 1/2 cone，1/4 cone
