The Changing Nature of Electrical Current
In traditional electrical systems, current typically follows a relatively stable sinusoidal waveform. Most measuring instruments—including many standard clamp meters—are designed based on this assumption. In such cases, measuring current is relatively straightforward: reading the average value and converting it to RMS is sufficiently accurate for most applications.
However, inverters have fundamentally changed this behavior. Instead of delivering a continuous current, an inverter operates by switching voltage on and off at high frequencies, effectively reconstructing the output waveform. As a result, the current is no longer smooth—it becomes a series of pulses with continuously varying amplitude and frequency. In other words, the waveform is no longer purely sinusoidal but a complex structure composed of multiple overlapping harmonic components. And this is precisely where measurement errors begin to arise.
Why is Clamp Meters measure incorrect for Inverters?
During the inspection of an inverter-based air conditioning system at a residential site, a technician noticed that the measured current was significantly lower than the rated specification. Based on this reading alone, one might conclude that the system was operating efficiently.

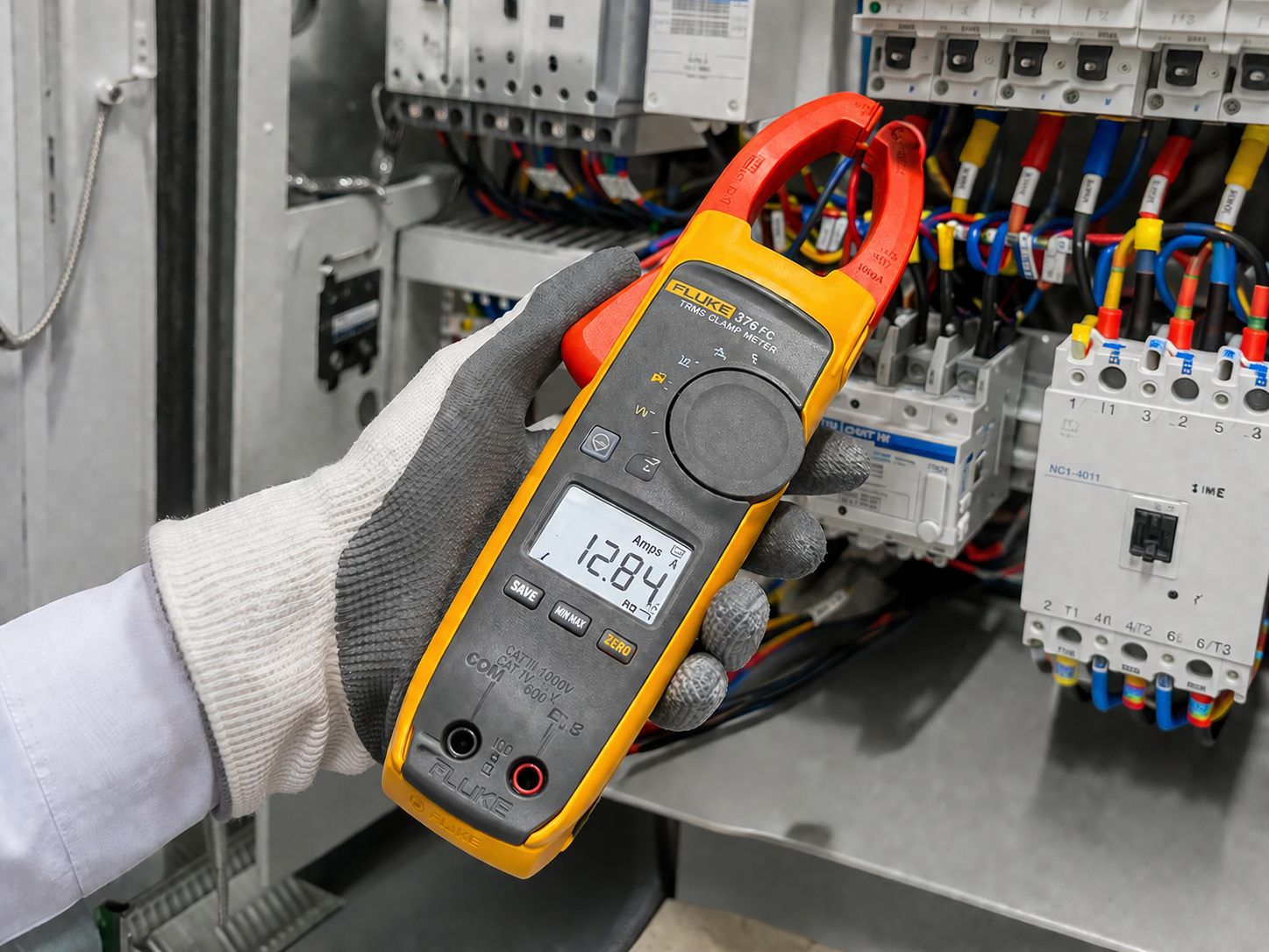

However, when a clamp meter equipped with True RMS measurement and noise filtering was used, the results told a completely different story. The actual current exceeded the nominal value by approximately 20–30%. More importantly, the waveform clearly revealed the presence of high-frequency components—a typical sign of a non-linear load. This explains why the equipment was overheating, consuming more energy than expected, or degrading faster over time.
True RMS and LPF – Often Overlooked but Critical
When working with inverter systems, using a True RMS clamp meter is no longer an advanced option—it is a necessity. However, in many cases, even True RMS alone is not sufficient. High-frequency components generated by the inverter’s switching process can interfere with the measurement, causing the device to capture signals that are not representative of the actual load current.
This is where the Low Pass Filter (LPF) function becomes essential. By filtering out high-frequency components, LPF allows the instrument to focus on the portion of the signal that truly reflects the energy consumed by the load. When True RMS is combined with LPF, measurement results become more stable and accurately represent real operating conditions.
What’s concerning is that many users measuring inverter systems with clamp meters are either unaware of this function or do not enable it. As a result, they may unknowingly rely on inaccurate readings. Once the measurement itself is flawed, all subsequent decisions—from performance evaluation to fault diagnosis—are built on an unreliable foundation.
Understanding of how equipment operates is crucial in selecting the right measurement tools. This's ensures accurate data analysis, supports predictive maintenance strategies, and helps minimize operational risks and losses.
